Use a size chart app with Swatchfy

Swatchfy replaces your theme's variant picker with its own swatch rows. Most size chart apps carry on working exactly as before. A few place their button inside the picker Swatchfy replaces — when that happens the button is still there, but shoppers cannot see it.

This article covers both: putting the button where you want it, and getting it back if it vanished.

First, check where your button is

Open a product page on your storefront that has a size chart.

• Button is visible and in a sensible place — nothing is wrong. Read on only if you want it beside the size swatches instead.

• Button has disappeared since you turned Swatchfy on — your size chart app placed it inside the variant picker. Follow Option B below.

Test on the storefront, not in the theme editor. The theme editor renders things slightly differently.

Where the button can go

Swatchfy leaves an empty space at the end of each option's label line — the line that reads Size: M. Anything you put there sits neatly at the right-hand end of that line, and you do not have to write any styling to make it line up.

There are two ways to fill it. Try Option A first: it takes ten seconds and needs no code.

Option A — your size chart app's own placement setting

Some size chart apps have a setting called CSS selector, Custom selector or Custom placement. If yours does:

1. Open your size chart app's settings and find that field.

2. Paste this in:

.kiteapps-swatches[data-kiteapps-option-index="1"] .kiteapps-swatches__optslot

3. If there is a position dropdown, choose Insert inside.

4. Save, then open a product page.

The 1 is which option row. Options are counted from 0, so 0 is your first option and 1 is your second. On a product with Color then Size, 1 is the Size row. Change the number to match your own products.

If the button disappears completely after this, your size chart app looked for the row before Swatchfy had drawn it. That is not something you can fix in its settings — use Option B instead.

Option B — paste a snippet into Swatchfy

This works with every app in the table below, and does not depend on your size chart app having any placement setting.

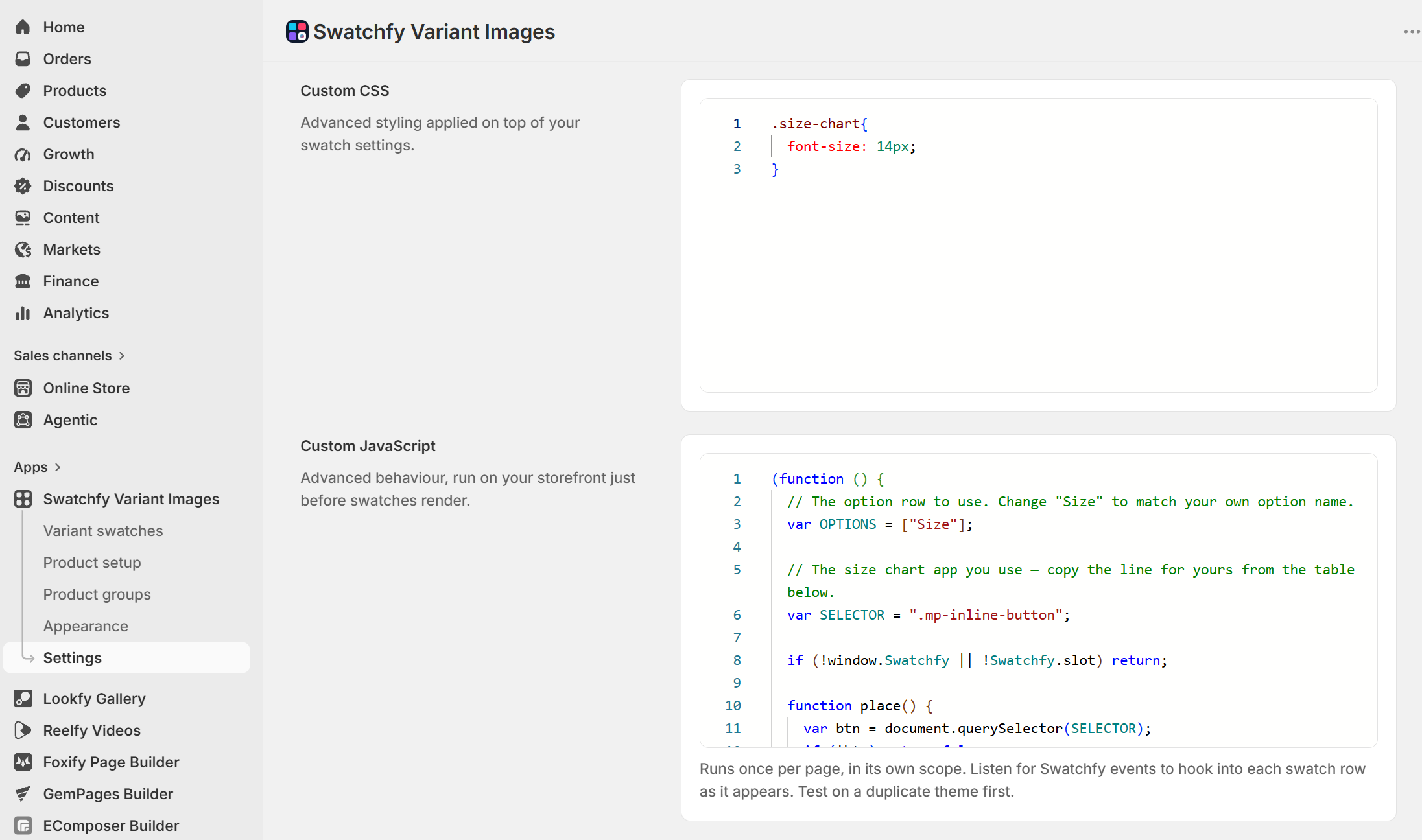

1. In Swatchfy, go to Settings › General.

2. Scroll to Custom JavaScript.

3. Paste the snippet below, changing one line — see the table.

4. Click Save, then open a product page.

(function () {
  // The option row to use. Change "Size" to match your own option name.
  var OPTIONS = ["Size"];
  // The size chart app you use — copy the line for yours from the table below.
  var SELECTOR = ".mp-inline-button";
  if (!window.Swatchfy || !Swatchfy.slot) return;
  function place() {
    var btn = document.querySelector(SELECTOR);
    if (!btn) return false;
    var wanted = [].concat(OPTIONS);
    for (var i = 0; i < wanted.length; i++) {
      var slot = Swatchfy.slot(wanted[i]);
      if (slot) {
        if (btn.parentNode !== slot) slot.appendChild(btn);
        return true;
      }
    }
    return false;
  }
  var polling = false;
  Swatchfy.on("swatchfyOptionRendered", function () {
    if (place() || polling) return;
    polling = true;
    var tries = 0;
    var timer = setInterval(function () {
      if (place() || ++tries > 40) { clearInterval(timer); polling = false; }
    }, 250);
  }, true);
})();

The one line to change

Your size chart app

Use this SELECTOR

Using a size chart app that is not listed? Contact support with the app's name and we will find the right line for you.

Choosing the right option row

OPTIONS is a list, tried in order, and the first row that exists on the product wins.

• One option name across your catalogue — leave it as ["Size"].

• Some products use a different name — list them all: ["Size", "Length", "Width"].

• You sell in more than one language — use the row's position instead of its name: [1]. Positions count from 0, so [1] is the second option.

Option names are translated on a translated storefront: a French market shows Taille, not Size. A snippet written with ["Size"] will quietly do nothing there. [1] keeps working in every language, which is why it is the safer choice for international stores.

Running two size chart apps

You can paste more than one snippet — just paste each one whole, exactly as it is written above. Each keeps its own settings because everything sits inside its own (function () { … })() wrapper.

If it still does not work

Nothing appears at all. Check that your size chart app has a chart assigned to that specific product. Most apps show no button on products without one, and that is their behaviour, not Swatchfy's.

The button is on the wrong row. Change the number or name in OPTIONS.

The button vanished when I switched Swatchfy off. That is expected if you used Option A: the space it sits in only exists while Swatchfy is running. Turn the app embed back on and it returns. Option B fails more gently — it simply does nothing.

Everything looks right in the theme editor but not on the storefront. Always confirm on the live storefront. The theme editor is not a reliable preview for app placement.

Still stuck? Contact support and tell us which size chart app you use and the URL of a product page where the problem shows. That is usually enough for us to send you the exact line to paste.
